Product Overview:

This product is suitable for indoor AC 50Hz, rated voltage of 3.6KV, 7.2KV, 12V, 24KV, 40.5KV system, and can be used with other switches and electrical appliances such as load switches and vacuum contactors, a short circuit and overload protection element for power transformers and other electrical equipment, and is also a necessary supporting product for high-voltage switch cabinets, ring network cabinets, and high low voltage prefabricated substations.

Function selection table：

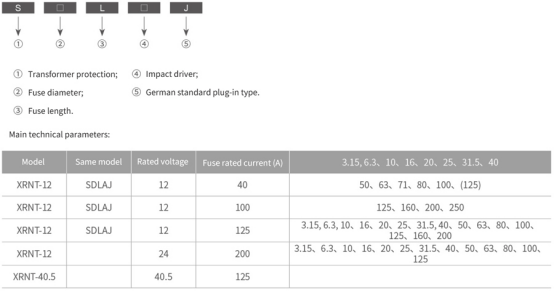

Basic product parameters

This series of products is suitable for indoor AC 50Hz ~ 60Hz, rated voltage 3.6kv ~ 40.5 system, can be used with other protective devices (such as vacuum contactors, load switches, etc.), as a short-circuit protection element for high-voltage motors power transformers, voltage transformers and other power equipment.

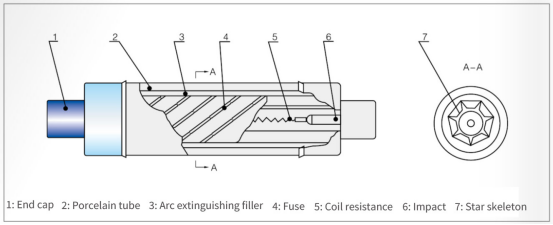

Product structure diagram;

This series of products is suitable for indoor AC 50HZ ~ 60Hz, rated voltage 3.6kv ~ 40.kv system, can be used with other protective electrical appliances (such as vacuum contactors, load switches, etc.), as a short-circuit protection element for high- motors, power transformers, voltage transformers and other power equipment.

New type of high pressure current limiting fuse product features

　The high-pressure current limiting fuse produced by our company is a high-quality product with world-class quality, developed on the basis of comprehensive research of similar products at home and abroad. The product has the following features:

✩High-capacity circuit breaker, rated for up to 63KA of interrupting current;

✩Low power consumption; low temperature rise;

✩Action characteristics are fast, and the action of one second characteristics is faster than the same kind of products produced in China at present, for example, the rated current 100A fuse, the arc time is not more than 0.1S when the expected current of 1000A is passed through

✩Less than  ±10% error in the characteristic of pressing according to the first method;

✩Equipped with a spring-type striker, which has the advantages of large contact surface and low pressure. Therefore, when pushing the switch interlocking action, will be no case of shattering or perforating the contact surface of the switch and the striker.

✩Specification standardization

✩Has a significant limiting effect;

✩Capable of reliably breaking any fault current between the minimum breaking current and the rated breaking current. In addition, various non-standard products can be produced according to the's requirements.

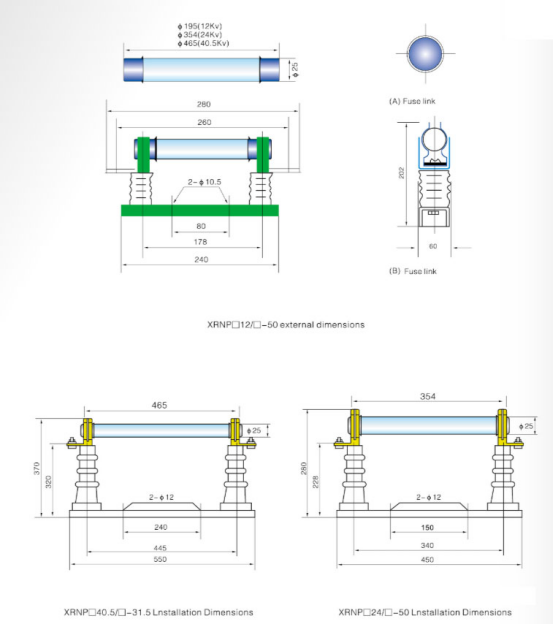

Dimensions
