BH-0.661 type current transformer
Short Description:
BH-0.66| Series current transformers are suitable for AC lines with a rated frequency of 50Hz and a rated voltage of 066kV or below for current, power measurement or relay protection. The product is a plastic shell current transformer, which is widely used in cabinet bodies. Its installation method can fixed with busbar and bottom plate mounting method, suitable for installation in any direction, and the primary conductor can be busbar or cable.
Standard: GB 2040.1, GB20840.2
Product details
Product Overview:
BH-0.66| Series current transformers are suitable for AC lines with a rated frequency of 50Hz and a rated voltage of 066kV or below for current, power measurement or relay protection. The product is a plastic shell current transformer, which is widely used in cabinet bodies. Its installation method can fixed with busbar and bottom plate mounting method, suitable for installation in any direction, and the primary conductor can be busbar or cable.
Standard: GB 2040.1, GB20840.2

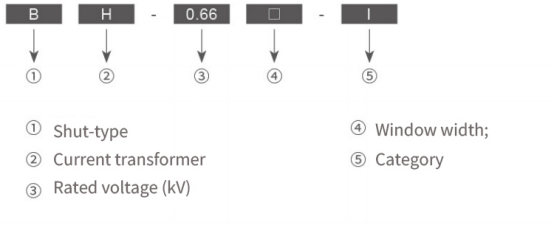

Model Meaning：
Normal working conditions and installation conditions
1. Installation location: Indoor;
2. Ambient temperature: -5℃ ~ 40℃, with the daily average not exceeding 0°C;
3. Altitude: Not exceeding 1000m;
4. Atmospheric conditions: When the highest temperature is 40℃, relative humidity of the air should not exceed 50%, and at lower temperatures, the relative humidity should not exceed 80%;
5. There is no severe pollution the atmosphere, and there are no gases and conductive dust in the medium that are sufficient to corrode metal and damage insulation;
6. The installation site is free from severe and jolts;
7. The installation site is not exposed to direct sunlight, rain, snow erosion, and there is no severe mold.
